Study on Carbon Emissions Produced by Reinforced Concrete and Modular Construction

This article reviews a study on the carbon emissions produced by modular construction methods versus those using traditional reinforced concrete. The researchers, writing in the journal Buildings, used a Korean case study to investigate their hypothesis.

Study: Comparison of the Embodied Carbon Emissions and Direct Construction Costs for Modular and Conventional Residential Buildings in South Korea. Image Credit: tsyklon/Shutterstock.com

Most buildings in South Korea are currently constructed using traditional wet construction methods, such as reinforced concrete (RC) construction, even though this can result in productivity issues due to a lack of functional engineering capabilities, skilled workers, and unfavorable weather conditions.

It is hardly surprising that construction companies are becoming increasingly interested in modular construction methods, in which pieces are made in factories under regulated conditions and then transferred to the construction area for assembly.

Modular construction is a high-tech, dry-construction process that boosts construction productivity and efficiency. Off-site construction, which includes modular construction, refers to the pre-fabrication or manufacture of discrete units that are then assembled on-site to form the finished structure.

The benefits of modular construction, like its integrated design approach, productivity, and structure, have been the focus of most research in this area. Since the building industry contributes to more than 30% of global carbon dioxide emissions, it is essential that carbon pollution from the industry is reduced.

In-depth research on factors such as environmental effect assessments and economic evaluation of modular construction methods are required to assure the overall sustainability of modular construction techniques.

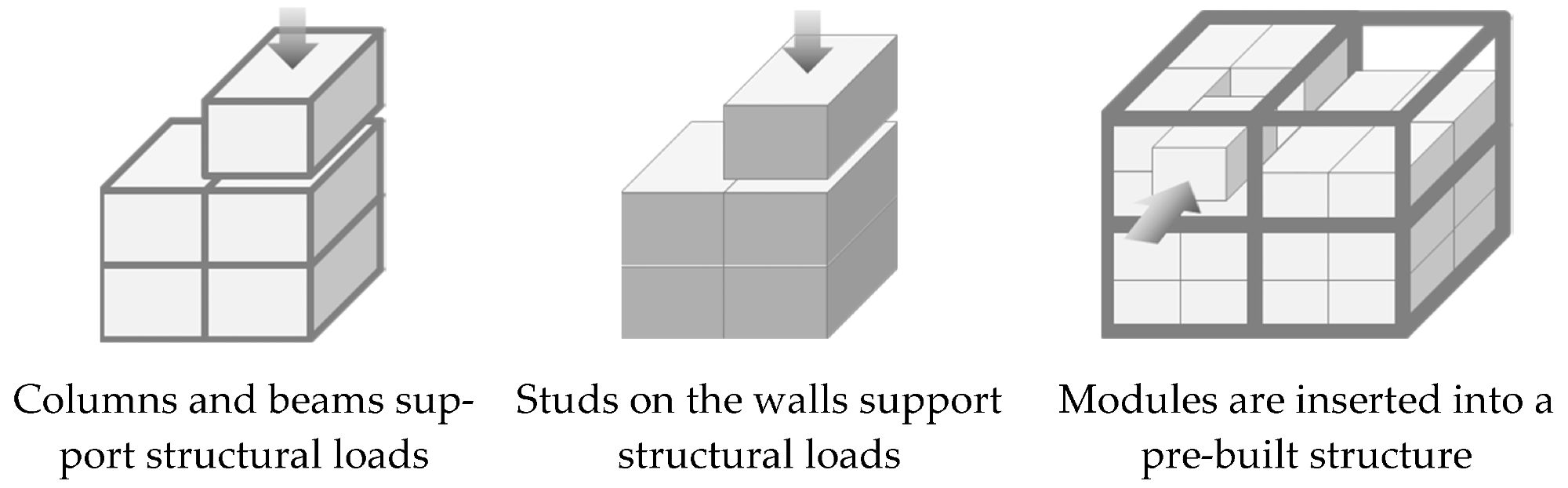

Modular construction methods. Image Credit: Lim, 2016

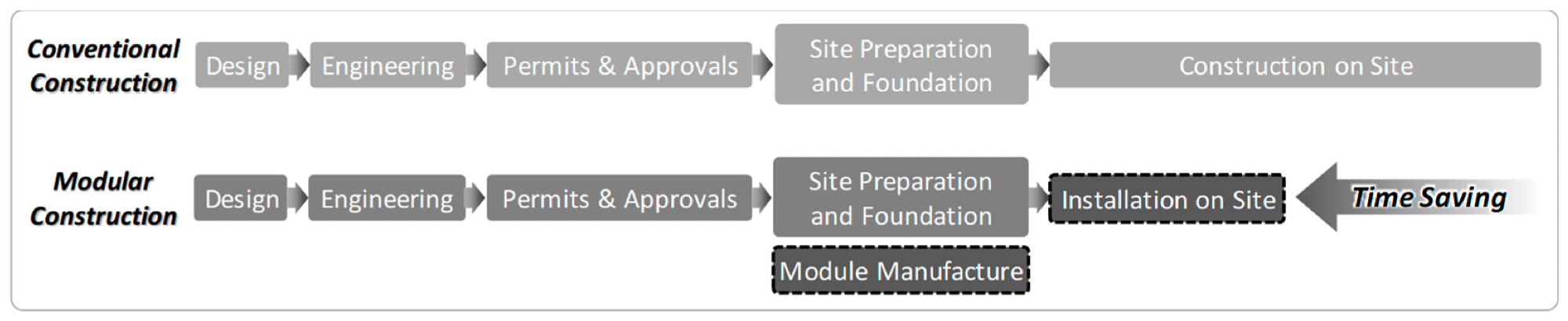

Modular construction methods. Image Credit: Kamali and Hewage, 2016; du Chayla, et al., 2021

As a result, this study compares the embodied carbon emissions and direct construction cost of a modular residential building during the production phase to those of a traditional residential building. Researchers concentrated on the material production phase because it has been shown that in modular building approaches this step produces more embodied carbon emissions than other project stages.

Methodology

Principal drawings and design details of the modular residential building chosen for this study were created. Table 1 and Figure 3 provide an overview and front view of the project, respectively.

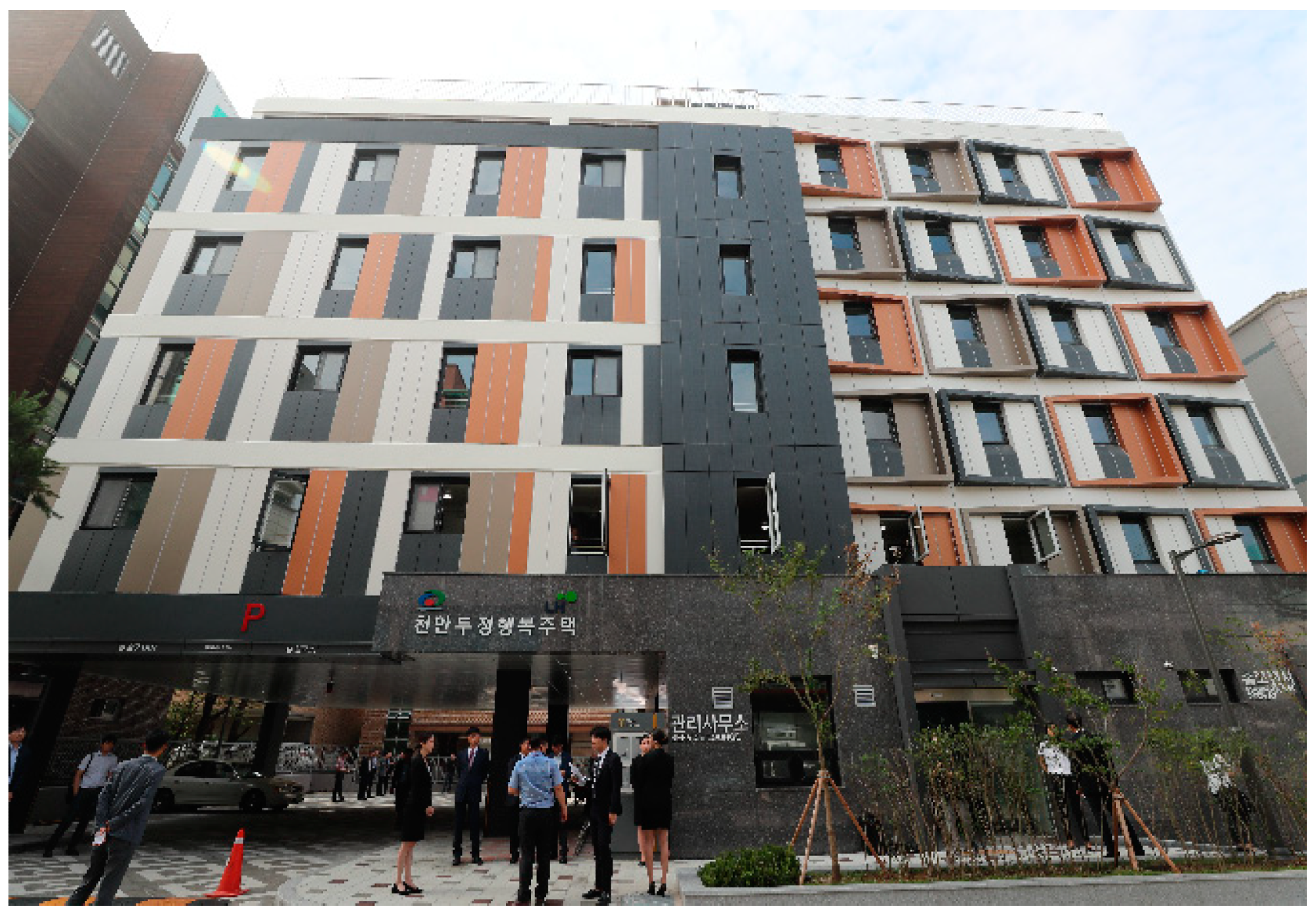

Figure 3. Front view of target building. Image Credit: Jang, et al., 2022

Table 1. Project overview. Source: Jang, et al., 2022

The common section, designated A-Wing, was constructed using the traditional RC construction method, while the residential parts, which included portions of the B-Wing and the C-Wing, each with 20 houses, were constructed using two alternative modular construction methods.

As a result of modular and RC construction methods, Table 2 compares the embodied carbon emissions normally produced by construction materials used for residential buildings.

Table 2. Quantity of major construction material using the two building systems. Source: Jang, et al., 2022

The Korea Environmental Industry and Technology Institute (KEITI) developed embodied carbon emission parameters that were used to assess embodied emissions in the manufacturing stages of modular and RC residential buildings. Table 3 shows the embodied carbon emission factors for several important construction materials during the manufacturing process. The unit costs of major construction materials are shown in Table 4.

Table 3. Embodied carbon emission factors in the production phase for major construction materials. Source: Jang, et al., 2022

Table 4. Unit material cost of major construction materials. Source: Jang, et al., 2022

* 1 United States Dollar (USD) = 1240 Korea Won (KRW).

Results and Discussion

The results of the embodied carbon emissions assessment of the primary construction materials utilized in this study are shown in Table 5. Figure 5 presents a comparison of the embodied carbon emissions for the modular and RC construction methods.

Table 5. Results of the assessment of the embodied carbon emissions. Source: Jang, et al., 2022

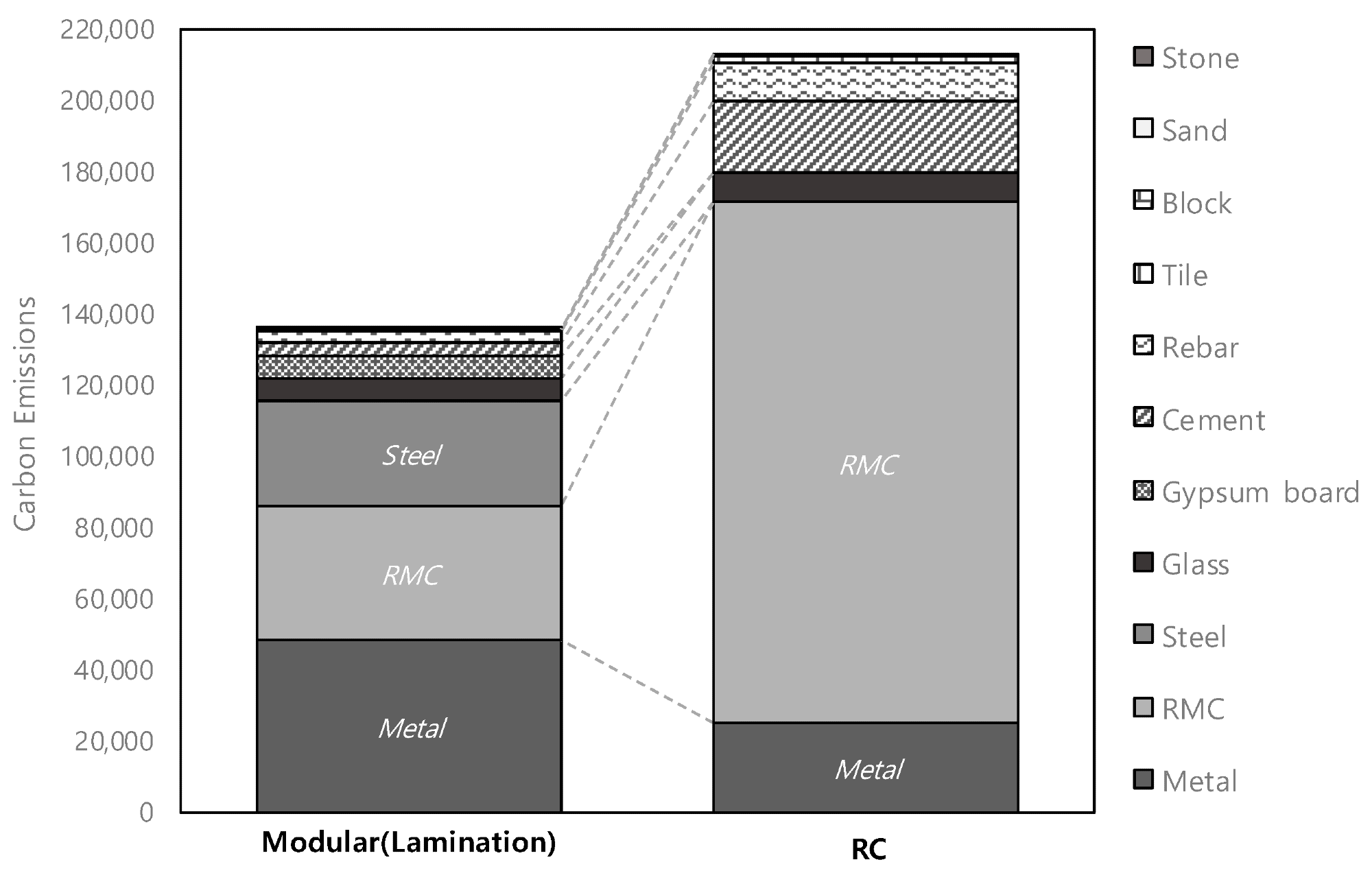

Figure 5. Comparison of the modular and RC building embodied carbon emissions. Image Credit: Jang, et al., 2022

The direct building expenses of the modular and RC construction methods are shown in Table 6 and Figure 6.

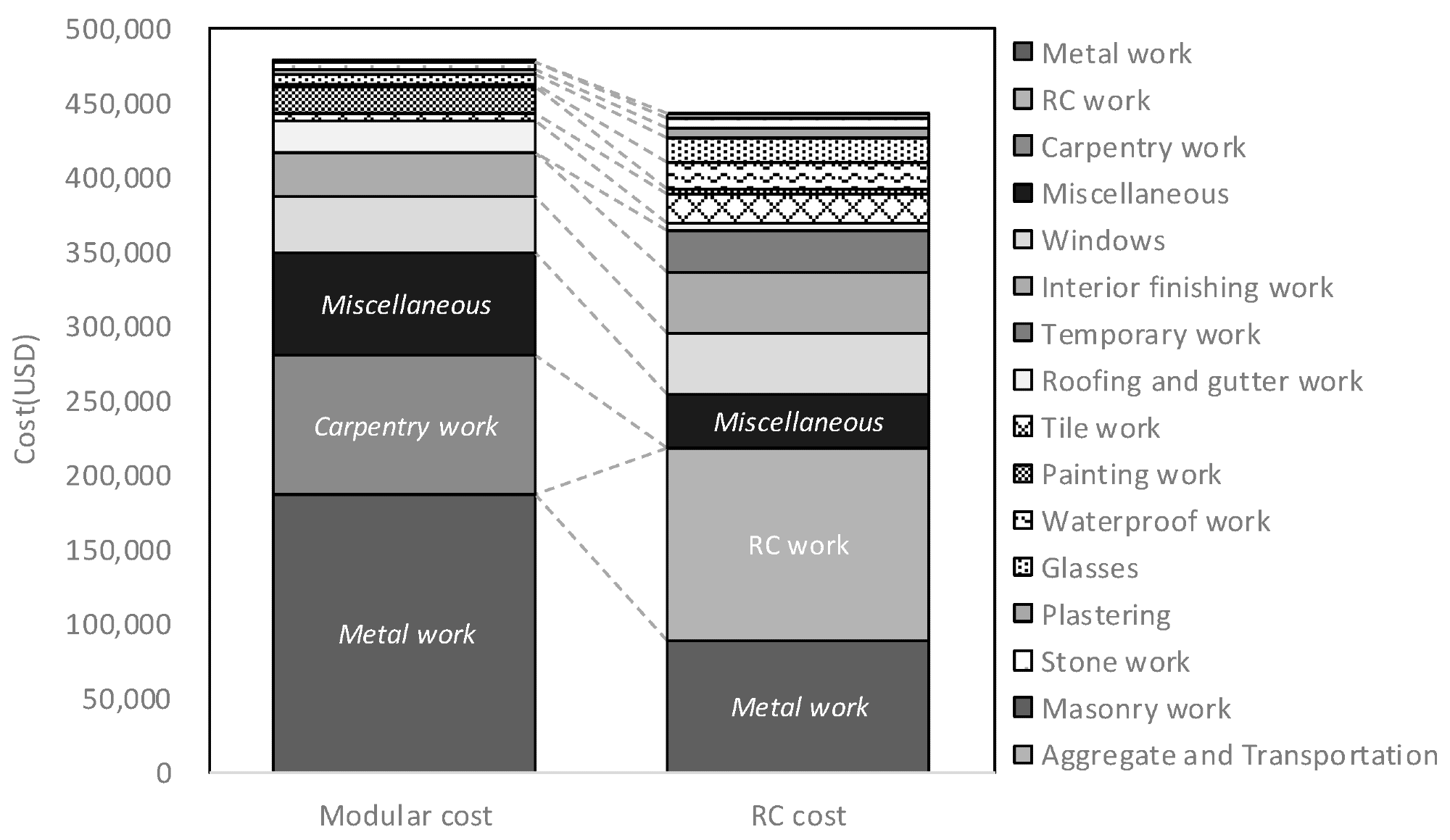

Figure 6. Comparison of modular construction and RC construction costs. Image Credit: Jang, et al., 2022

Table 6. Direct construction costs for the modular and RC construction methods. Source: Jang, et al., 2022

* 1 USD = 1240 KRW.

Even though the direct building cost was slightly greater, the outcomes of this study revealed that modular construction can lower embodied carbon emissions throughout the material production phase when compared to an equal RC structure.

As shown in Table 7, the environmental impact of RC structures is higher compared to modular structures.

Table 7. Characteristics summary table of RC method and modular method. Source: Jang, et al., 2022

Conclusion

The results of the modular and RC construction methods were compared and assessed, as well as the embodied carbon emissions and direct construction expenses incurred at the time of the material production phase of a residential building.

The study identified that when compared to the traditional RC approach, the modular construction method decreased embodied carbon emissions in the material production stage by around 36%.

It also observed that when direct construction costs for modular and RC building methods were compared, the modular method was more expensive.

The direct construction cost of the modular construction technique was 477,332 USD, which was approximately 8.1% higher than the RC construction method; according to an examination of the two methods’ direct construction costs.

However, the benefits of modular design such as ease of maintenance and high recycling rates were not addressed in this study. Amore comprehensive cost analysis will be required to acquire a full life-cycle perspective.

Journal Reference:

Jang, H., Ahn, Y., Roh, S. (2022) Comparison of the Embodied Carbon Emissions and Direct Construction Costs for Modular and Conventional Residential Buildings in South Korea. Buildings, 12(1), p. 51. Available Online: https://www.mdpi.com/2075-5309/12/1/51/htm
