What Every Builder Needs to Know About Specialty Shielding Materials

When it comes to healthcare construction, few elements are as specialized or as technically demanding as shielding. These materials are critical for protecting patients, clinical staff, and the public from harmful radiation in environments such as X-ray rooms, CT suites, PET facilities, and nuclear medicine departments.

The implications of improper shielding go far beyond failed inspections; they can affect the long-term operational safety and licensing of a facility.

Unlike conventional building materials, shielding products must meet stringent performance standards and be installed with a high level of precision.

For general contractors, having a thorough understanding of shielding types, their correct applications, and the broader construction impacts is essential. It ensures facilities are built safely and cost-effectively while staying compliant with regulatory and health standards. A lack of due diligence can lead to extended delays, failed approvals, and considerable financial losses.

Why Shielding Demands Special Attention

Shielding is not merely an additional layer in the wall assembly. It constitutes a specialized safety system that has direct implications for radiation protection and facility accreditation. Unlike standard construction features, shielding requires input from medical physicists, engineers, and inspectors to meet federal and state radiation safety regulations.

Even minor missteps during the planning or installation phase, such as material misalignment or unshielded penetrations, can compromise the integrity of the system. These mistakes often result in expensive corrections and, in some cases, demolition of completed work. Identifying shielding requirements early in the design phase and integrating them into the construction schedule allows for better coordination across trades and minimizes disruption.

Lead: The Standard in Radiation Protection

Lead is the most widely used material in radiation shielding, valued for its high density and cost-effective radiation attenuation. It remains the go-to choice in most healthcare applications due to its proven performance. Contractors frequently encounter lead in the form of rolled lead sheets, lead-lined drywall, interlocking lead bricks, and in the fabrication of radiation-resistant doors and view panels.

Despite its effectiveness, lead presents several construction-related challenges. It is significantly heavier than standard materials, often requiring additional structural support. Its malleability means it can deform if mishandled, and the presence of lead dust or debris demands stringent safety measures during installation.

Lead systems must also be meticulously integrated with other building elements to avoid radiation leaks. Successful installation requires close coordination with project physicists to verify coverage and continuity.

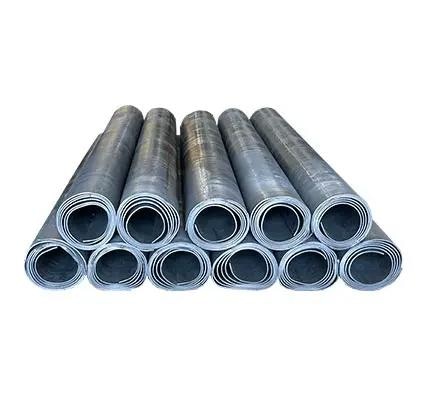

Image Credit: Ultraray

Leaded Glass and Acrylic: Combining Visibility with Protection

Observation windows in diagnostic and treatment areas must provide visibility without compromising radiation protection. Lead glass and acrylic panels serve this dual purpose, allowing staff to observe procedures while shielding them from exposure. These materials are engineered with a specific lead equivalency, matching the radiation resistance of surrounding walls.

Leaded glass and acrylic are considerably more fragile and heavier than standard glazing, which necessitates reinforced framing and precise handling. During installation, any misalignment or inadequate sealing can result in radiation leaks.

Moreover, damage to these panels during transportation or staging can delay installation. It is crucial to store them in protective packaging and ensure they are installed only when the surrounding area is ready and secure. Proper inspection protocols before and after installation help maintain quality assurance.

Alternative Shielding Materials: When Lead is Not an Option

In certain scenarios, alternative shielding materials may be specified due to environmental restrictions, space limitations, or specialized design needs. High-density concrete and borated polyethylene are examples of alternatives that may be selected based on performance or structural requirements.

Each alternative comes with unique handling and installation protocols. For example, high-density concrete requires precise batching and formwork, while barium boards may need custom framing to ensure effective installation.

These materials can also be subject to longer lead times, as they are often manufactured to order. As such, contractors must work closely with manufacturers to understand product tolerances, installation conditions, and performance data. Incorporating these considerations early in the construction timeline is vital to maintaining progress and minimizing the risk of delays.

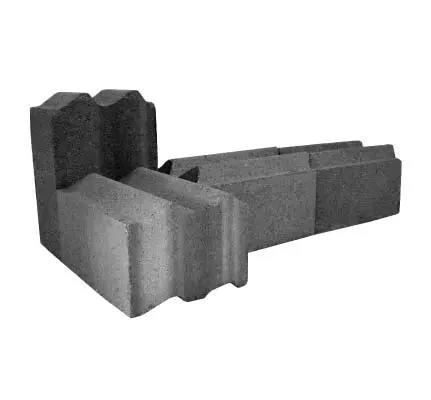

Image Credit: Ultraray

Structural Implications of Shielding Materials

The weight of radiation shielding materials introduces significant structural considerations that are not typically encountered in conventional construction. Walls, ceilings, and floors must be designed to support the additional loads imposed by lead sheets, dense concrete, or embedded shielding panels. Failing to address these requirements can result in structural deformation, such as sagging walls or misaligned doors, which may compromise both safety and compliance.

It is recommended that structural engineers be consulted during the initial design phase to assess load paths and integrate reinforcements where necessary. This may include adjustments to framing dimensions, support brackets, or anchor systems. Ensuring structural readiness not only protects the physical integrity of the building but also simplifies the inspection process and accelerates overall project delivery.

Common Installation Errors and How to Prevent Them

Radiation shielding is frequently subject to inspection failures due to issues that emerge during installation. These may include gaps between shielding layers, improperly sealed penetrations for electrical or plumbing systems, and misaligned window frames. As these faults are often concealed behind finishes, they may not be identified until radiation surveys are conducted.

To avoid such issues, contractors should ensure that all construction teams are adequately trained in the handling and installation of shielding materials.

Incorporating a quality assurance program that includes pre-cover inspections, checklists, and documentation of as-built conditions is strongly advised. Engaging a shielding consultant during critical stages of construction can help catch errors before they require costly remediation.

Procurement and Planning: Staying Ahead of the Timeline

Radiation shielding materials are often custom-fabricated to meet specific project dimensions and performance criteria. They are not typically available from standard suppliers and may require lead times ranging from several weeks to a few months. This makes early procurement planning essential to avoid construction delays.

Contractors should work with project managers and architects early in the process to finalize shielding specifications. Once materials are ordered, provisions should be made for secure, climate-controlled storage to prevent degradation or contamination. Aligning the delivery schedule with the construction timeline ensures that materials are on-site when needed, minimizing risks associated with last-minute changes.

Conclusion: Precision and Planning Are Non-Negotiable

Specialty shielding materials are critical to the safe and compliant operation of modern healthcare environments. Whether using lead, leaded glass, or alternative shielding products, contractors must approach these systems with a high level of planning, precision, and technical knowledge. These materials are not interchangeable with standard construction components and must be treated with the rigor typically reserved for life safety systems.

By recognizing the unique challenges associated with shielding, coordinating early with project stakeholders, and maintaining high standards of quality control, contractors can deliver radiation-safe facilities that meet regulatory approval and exceed client expectations.

Ultraray Group has spent decades helping healthcare builders, architects, and engineers design safer, code-compliant facilities through advanced radiation shielding solutions. To learn more about choosing the right shielding materials for your project, explore ultraray.com.

This information has been sourced, reviewed and adapted from materials provided by Ultraray.
