By Nidhi DhullReviewed by Susha Cheriyedath, M.Sc.Dec 11 2024A study published in World highlights how frequency-selective surfaces (FSSs) can be integrated into construction materials to harvest energy. The research provides practical insights into the design, performance, and potential applications of FSSs in creating more sustainable and energy-efficient buildings.

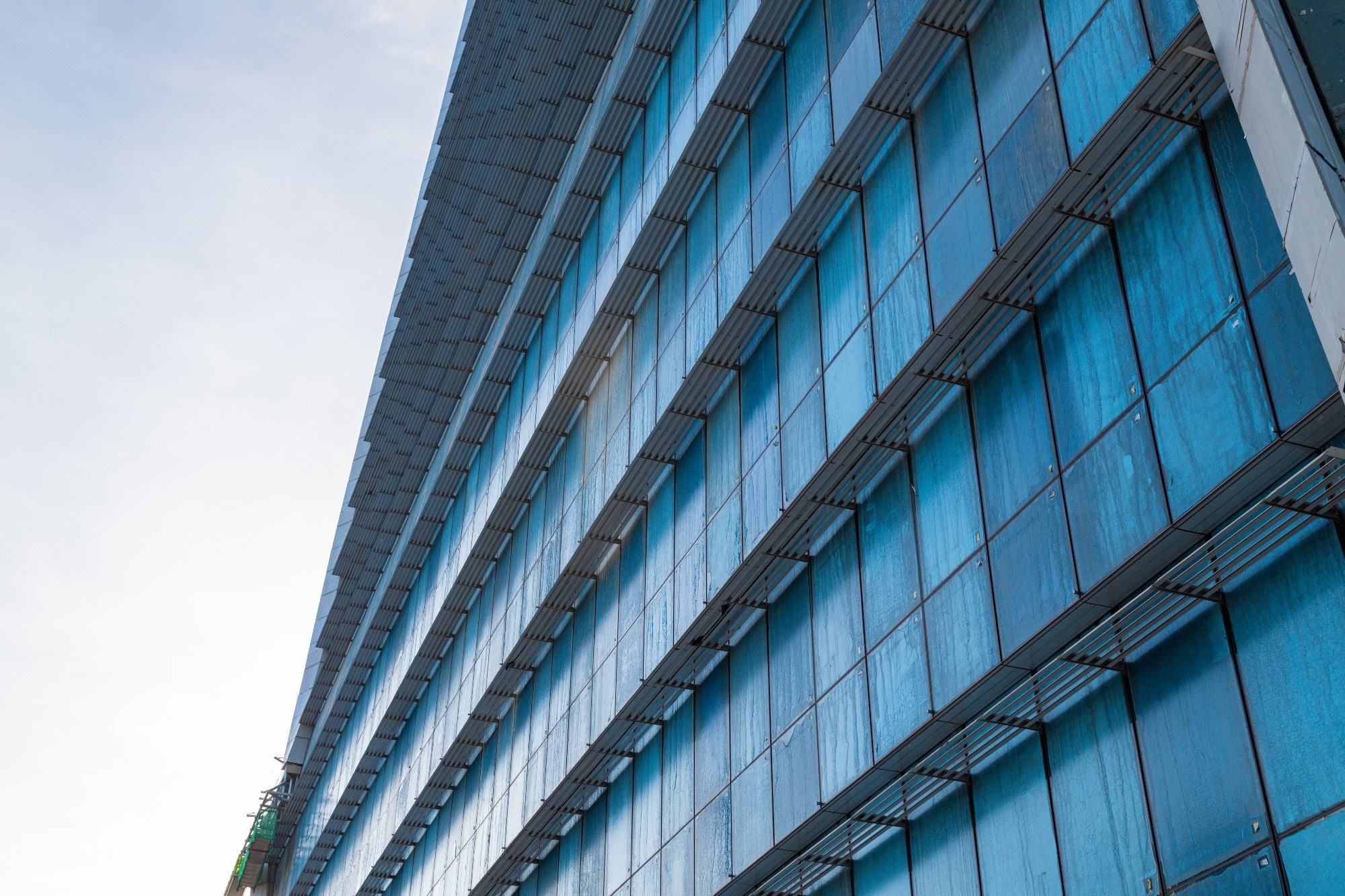

Study: Integration of Frequency-Selective Surfaces as Smart Skins in Building Envelopes and Divisions: Insulation and Energy Issues. Image Credit: Washburn HM/Shutterstock.com
Understanding Frequency-Selective Surfaces (FSS)
FSSs are innovative materials designed to act as spatial filters, allowing electromagnetic waves within specific frequency bands to pass through while blocking others. Unlike traditional building materials that provide general electromagnetic insulation, FSSs stand out due to their ability to selectively tune frequencies, offering a flexible and advanced alternative or complement to conventional options.
The foundation of FSS technology lies in the unit cell—a basic, repeatable structure arranged in a rectangular matrix. These unit cells are engineered to either transmit or reflect electromagnetic waves based on key factors such as frequency, polarization, and angle of incidence. Typically, the dimensions of the unit cell are matched to the wavelength of the incident wave to ensure precise and consistent performance.
Evaluating the effectiveness of FSSs involves a detailed analysis of their electromagnetic properties, including frequency response, polarization sensitivity, and angular stability. This process combines experimental testing with numerical simulations to provide a comprehensive understanding of their behavior.
Tailoring FSSs for practical applications adds a layer of complexity. Whether adapting to varied electromagnetic environments, enabling smart surface functionalities, or blending seamlessly into architectural designs, FSSs often need to handle multiple frequency bands and angles of incidence. This frequently requires integrating various FSS structures to meet specific application demands effectively.
Types of Planar FSS
FSS unit cells come in several designs, each tailored for specific applications. The main types include:
-
Cross Designs: Cross-cell configurations are commonly used to improve WiFi signals. A variation known as the "Jerusalem cross" enhances performance and can be made from lightweight, flexible materials, making it ideal for applications like smart fabrics.
-
Patch Designs: Patch-based FSSs go beyond signal control by incorporating energy-harvesting technologies. These designs can transform surfaces like window curtains into energy generators. Additional features can make them more compact or multifunctional.
-
Loop or Ring Designs: Compact and capable of handling multiple frequencies, loop and ring designs are excellent for minimizing signal interference. They’re particularly useful in high-density areas like apartment complexes.
-
Meander Designs: Meander cells bend conductive lines into tight configurations, creating longer signal pathways without occupying additional space. This makes them ideal for applications where space is limited.
Harvesting Energy with FSS
One of the most exciting applications of FSS technology is energy harvesting. These "smart skins" convert blocked radio-frequency (RF) energy into usable direct current (DC) power. Integrated into building structures, they can capture ambient electromagnetic energy from sources like mobile networks and WiFi.
The process involves embedding electronic circuits within the FSS design. Unit cells absorb RF signals, and rectifying circuits convert this energy into DC power, which can then be stored in small batteries or capacitors. This approach is particularly effective for powering low-energy Internet of Things (IoT) devices in smart buildings.
By reducing reliance on external power sources, FSS-enabled energy harvesting enhances building sustainability and energy autonomy. Large installations, such as exterior walls or windows, maximize energy capture, potentially lowering operational costs and advancing green infrastructure goals.
Conclusion and Future Prospects
While FSS technology has moved from prototypes to practical applications, several challenges remain. Key hurdles include:
- Manufacturing Tolerances: Fabricating complex FSS designs requires precise techniques, which can drive up costs.
- Environmental Sensitivity: Factors like temperature and humidity can impact performance.
- Scalability: Adapting intricate designs for large-scale use is still a significant challenge.
Despite these limitations, FSSs are making strides in specialized sectors like aerospace, defense, and telecommunications. Broader adoption in mainstream construction, however, will require improvements in material durability, cost-effectiveness, and reconfigurable designs.
Researchers also emphasize the importance of integrating FSS into Building Information Modeling (BIM) systems. This could streamline their incorporation into architectural planning, making them more accessible for energy-efficient and sustainable construction.
Journal Reference
Cuiñas, I., Expósito, I., Andriukaitis, D., Caldeirinha, R. F. S., Sánchez, M. G., & Valinevičius, A. (2024). Integration of Frequency-Selective Surfaces as Smart Skins in Building Envelopes and Divisions: Insulation and Energy Issues. World, 5(4), 1211–1234. DOI: 10.3390/world5040062, https://www.mdpi.com/2673-4060/5/4/62
