Structural Failure Analysis with Forensic Material Testing

Let’s face it, when it comes to buildings and infrastructure, materials matter. A lot. The safety, durability, and performance of any structure hinge on the quality of the materials used.

However, with substandard or even fake materials slipping into the global supply chain, the construction industry has a growing problem on its hands. These materials often get in through unauthorized swaps, bad formulations, or sloppy quality control.

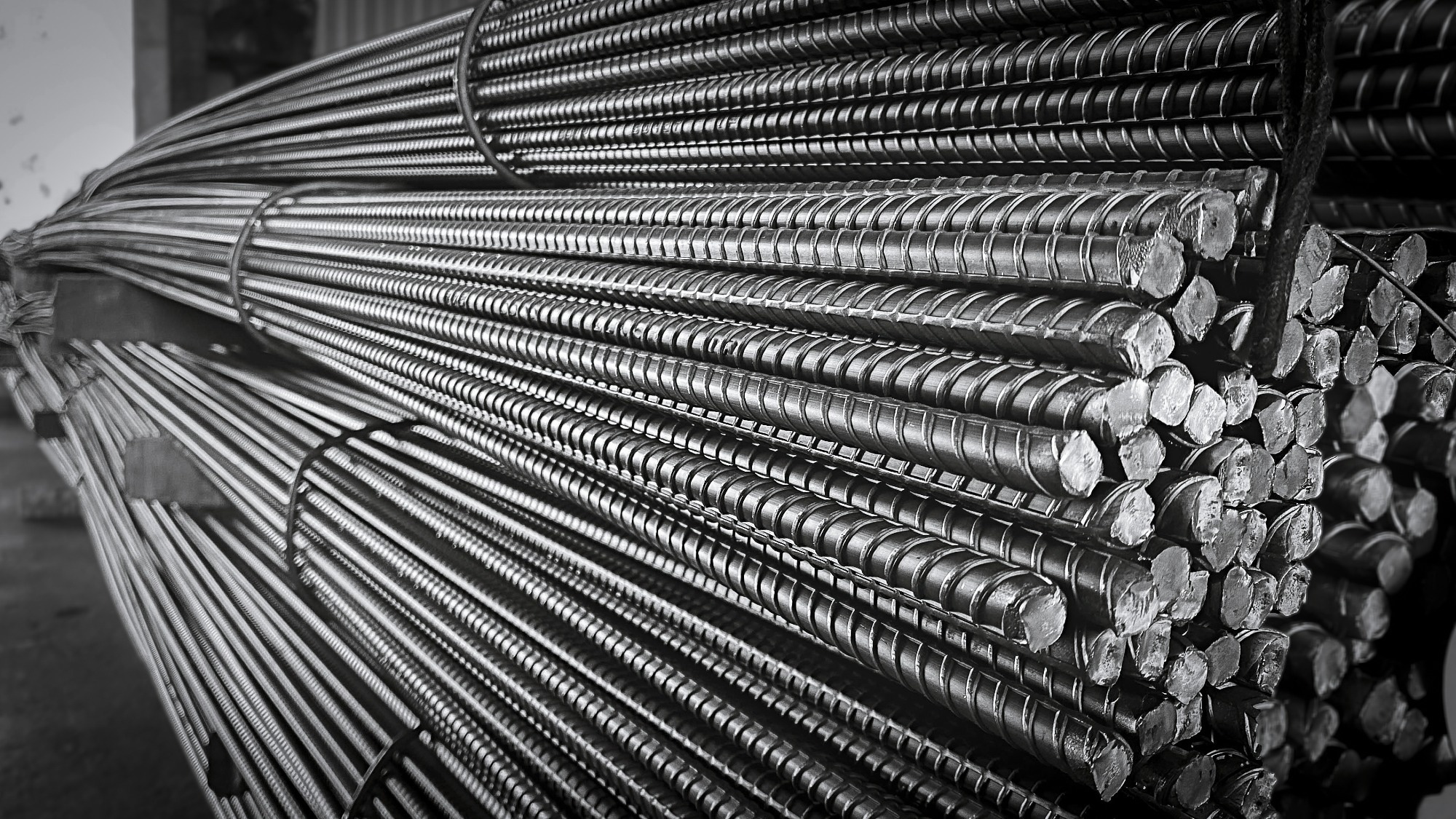

Image Credit: saweang.w/Shutterstock.com

So how do you catch the culprits and make sure what’s going into your structure is actually up to code? That’s where forensic science comes into play.

Forensic techniques—yes, the kind used to solve crimes—are increasingly being used to analyze building materials. By digging into the chemistry, structure, and behavior of materials, these methods help spot defects, confirm authenticity, and support better decisions all around. Whether it’s finding the source of a structural failure or validating supplier claims, forensic science is fast becoming a key player in modern construction.

Download your PDF copy now!

Forensic Science in Construction

In the construction world, forensic science is all about getting to the bottom of material failures—or preventing them. It involves a detailed analysis of whether building materials perform as expected and meet the required specifications. This process often kicks in when there's a suspected defect, a structural failure, or just a need to double-check that everything’s up to code.

The work is interdisciplinary by nature. Engineers, chemists, metallurgists, and forensic specialists team up to assess materials from different angles. Field assessments help establish load conditions and design context, while lab tests dive deep into samples taken from the site. Together, this data helps investigators reconstruct how and why a material failed, or validate whether a supplier's materials live up to the specs.

Forensic science is also key in disputes, insurance claims, and compliance cases. Its value isn’t just in solving problems, it’s in preventing them and strengthening trust in construction quality across the board.

Tools of the Trade: Key Techniques in Forensic Material Testing

Forensic testing draws on a suite of sophisticated techniques to assess a material’s physical, chemical, and mechanical properties. Here’s a rundown of the most commonly used methods:^3,4

• X-ray diffraction/fluorescence (XRD/XRF): Ideal for analyzing the elemental composition of metals, cement, and other critical materials.
• Fourier transform infrared (FTIR) spectroscopy: Used to identify polymers and organic compounds, such as adhesives, coatings, and sealants.
• Scanning electron microscopy (SEM): Offers high-resolution imaging to reveal microstructural flaws, like cracks or voids in steel and concrete.
• Optical microscopy: Supports petrographic analysis of concrete aggregates and binder phases, revealing the mix’s quality and integrity.
• Isotope and elemental analysis: Tracks material origins and detects contamination or unexpected additives.
• Mechanical testing: Measures properties like tensile and compressive strength to assess structural performance.
• Thermal gravimetric analysis (TGA): Evaluates how materials behave under heat, revealing details about their stability and composition.

These techniques often complement one another, especially when investigating suspected fraud or failures. By integrating physical, chemical, and structural insights, forensic experts can determine if materials meet regulatory standards or contribute to structural failure, aiding accountability and prevention.

Concrete: The Most Investigated Material on Site

Concrete shows up in more forensic investigations than just about any other material—and for good reason. Because it’s such a complex material, small mistakes in mixing or curing can lead to serious structural issues. Common red flags include a poor water-cement ratio, unauthorized additives, or curing problems.³

When investigators need to understand what went wrong, they turn to a mix of techniques. SEM and XRD are used to reveal micro-level flaws. If there’s concern about the aggregates—whether recycled materials were used, for example—petrographic analysis can confirm it.

In cases where the concrete is degrading faster than expected, tests like phenolphthalein staining and chloride ion analysis come into play. These help measure carbonation depth and chloride ingress, which are key factors in long-term durability.⁵

Chemical admixtures are another piece of the puzzle. Sometimes unapproved additives are used to cut costs, but they can compromise performance. Techniques like FTIR and mass spectrometry can detect those additives. This is especially important in marine or high-humidity environments, where constant moisture exposure can accelerate deterioration. Catching these issues early is critical for planning effective repairs.

Verifying the Integrity of Steel and Reinforcement

Just like concrete, steel often ends up under scrutiny. A rebar might look solid, but if it’s missing key alloying elements or wasn’t heat-treated properly, it can fail when it matters most.

That’s why forensic teams start with the basics: confirming the alloy composition. XRF and optical emission spectroscopy (OES) are standard tools for checking if the steel actually matches the spec sheet. From there, mechanical testing digs deeper, measuring tensile strength and ductility to see how the material behaves under stress. SEM is used to inspect the grain structure, revealing clues about sloppy manufacturing or skipped heat treatments.

Corrosion is another red flag, especially in marine or humid environments. Electrochemical testing and cross-section analysis help figure out how far the damage has spread. And when there’s concern about long-term fatigue—like in bridges or high-vibration structures—fractographic analysis is used to trace cracks caused by repeated loading.

Sometimes, what’s uncovered is more than just wear and tear. Tests often reveal discrepancies between what was ordered and what was actually installed. Whether part of a post-failure investigation or a routine checkup, authenticating steel isn’t just box-checking; it’s essential for catching fraud, verifying compliance, and keeping structures safe over time.^4,6

Why Case Studies Matter in Forensic Materials Analysis

So, how do these forensic methods actually play out in the field? Case studies offer a direct line from lab techniques to real-world consequences—and show just how critical material testing is when failure occurs.

Take the Hyatt Regency walkway collapse in 1981. On the surface, it was a structural failure caused by a flawed connection design. But forensic investigators used metallurgical testing and load analysis to trace how a last-minute design change redistributed forces through the hanger rods. The materials hadn’t failed—the engineering review had. Yet without physical testing and structural modeling, the exact failure sequence would have remained unclear. The case prompted sweeping changes to review protocols and connection detailing.⁷

In Ontario, a collapsed parking garage revealed a different story. Forensic teams used chloride ion profiling, petrographic analysis, and corrosion mapping to assess rebar deterioration. The findings confirmed long-term exposure to de-icing salts, inadequate waterproofing, and advanced steel loss—all of which had gone unaddressed. Those tests didn’t just determine cause; they reshaped local requirements for exposure class, drainage design, and protective coatings.⁸

And in Taiwan’s 2016 earthquake collapse, the discovery was even more stark: forensic metallurgical analysis found that tin cans—literally—had been used as filler in load-bearing columns. The deception wasn’t just unethical; it created weak points that led to structural collapse. These findings, backed by chemical and compositional testing, became key evidence in criminal proceedings.⁹

In each of these cases, the techniques covered earlier—SEM, XRF, petrography, chloride testing—weren’t just theoretical tools. They were the basis for uncovering failure mechanisms, assigning responsibility, and improving construction practice. Forensic testing isn’t just about understanding what happened; it’s about making sure it doesn’t happen again.

The Future: AI and Digital Forensics in Material Testing

Material testing is evolving, quietly, but decisively. Advances in machine learning, sensor networks, and digital infrastructure are reshaping how forensic tools are applied on-site and in the lab.

AI models trained on SEM imagery and spectral data are now capable of identifying microcracks, compositional irregularities, and early-stage degradation with a level of speed and consistency that manual analysis can’t match.¹⁰ Instead of reacting to failure, engineers can catch subtle signals before damage progresses.

Digital twins, virtual models built on real structural and material data, allow teams to simulate stress and fatigue in near real-time. When linked to embedded sensors, they help identify when and where a material is beginning to fall out of spec, long before performance becomes critical. This kind of data-driven feedback loop turns monitoring into a live process, not a scheduled check.

Blockchain-based traceability is also gaining ground. By recording material origin, composition, and handling history, it adds a layer of transparency that’s difficult to bypass. For forensic teams, it means clearer context during investigations. For the industry, it’s a step toward more accountable sourcing and construction practices.

What’s emerging is a new model of material verification, one that’s continuous, predictive, and tightly integrated into the lifecycle of a structure. Forensic analysis is no longer just a post-collapse exercise. It’s becoming a routine part of how buildings are monitored, maintained, and trusted to perform.

Looking to Learn More?

Want to learn more about the sector? Read the below topics:

• Harnessing AI and Machine Learning for Advanced Materials Testing
• Revolutionizing Infrastructure: The Future of Fiber Optic Sensing in Structural Health Monitoring
• Top 5 Advances in Concrete Technology for Modern Buildings
• Health and Safety Regulations: Keeping Up with Jobsite Compliance

Download your PDF copy now!

References and Further Reading

1. Franck, H., & Franck, D. (2013). Forensic Engineering Fundamentals. Boca Raton, FL: CRC Press. https://doi.org/10.1201/b13690
2. Ivanchev, I. (2022). Investigation with Non-Destructive and Destructive Methods for Assessment of Concrete Compressive Strength. Applied Sciences, 12(23), 12172. https://doi.org/10.3390/app122312172
3. Chinchillas-Chinchillas, M. J. et al. (2019). SEM Image Analysis in Permeable Recycled Concrete with Silica Fume: A Quantitative Comparison of Porosity and the ITZ. Materials (Basel), 12(13), 2201. https://doi.org/10.3390/ma12132201
4. Ali, M., et al. (2024). A Review on Chloride-Induced Corrosion in Reinforced Concrete Structures: Lab and In Situ Investigation. RSC Advances, 14, 37252–37271. https://doi.org/10.1039/D4RA05506C
5. Malheiro, R., et al. (2020). Effects of Exposure Sequence and GGBS Cement Replacement on Performance of Concrete Subjected to Carbonation and Chloride Ingress. Cement and Concrete Research, 130, 105788. https://doi.org/10.1016/j.cemconres.2019.105788
6. Tilly, G. P. (1979). Fatigue of Steel Reinforcement Bars in Concrete: A Review. Engineering Fracture Mechanics, 11(3), 557–571. https://doi.org/10.1111/j.1460-2695.1979.tb01084.x
7. Marshall, R. D., et al. (1982). Investigation of the Kansas City Hyatt Regency Walkways Collapse (NBS BSS 143). National Bureau of Standards. https://doi.org/10.6028/NBS.BSS.143
8. Griffith, A. (2017). Case Study: Fatal Parking Garage Collapse. ThinkReliability Blog. https://blog.thinkreliability.com/case-study-fatal-parking-garage-collapse
9.  Khan, M. (2016). Taiwan Earthquake: Investigations into Collapsed Building Made with Tin Can Fillers. International Business Times. https://stonybrook.digication.com/alessandra_albano/Final_Report1
10.  Melenbrink, N., Werfel, J., & Menges, A. (2020). On-site autonomous construction robots: Towards unsupervised building. Automation in Construction, 119, 103312. https://doi.org/10.1016/j.autcon.2020.103312
